Running Metropolis

Basic Principle

1. Write the input JSON files
2. Run the simulator in a terminal
3. Read and analyze the output JSON files

Input Files

• Road-network: list of edges with their characteristics, list of vehicle types with their characteristics
• Agent file: list of the agents with their characteristics (including modes available)
• Simulation parameters

Units

• Time: number of seconds since midnight (10AM is 36 000)
• Travel time: number of seconds
• Length: meters
• Speed: meters per second (50 km/h is 50 ÷ 3.6 m/s)
• Value of time: utility unit (e.g., €, $ or an abstract unit) per second
• Flow: vehicle length (in meters) per second

Road Network JSON File

Example Road Network JSON File


{
  "graph": {
    "edges": [
      [
        0,
        1,
        {
          "base_speed": 10.0,
          "length": 10.0,
          "constant_travel_time": 1.0,
          "bottleneck_flow": 1.0,
          "lanes": 2,
          "speed_density": {
            "type": "FreeFlow"
          },
          "overtaking": true
        }
      ],
      [
        1,
        2,
        {
          "base_speed": 20.0,
          "length": 10.0,
          "speed_density": {
            "type": "ThreeRegimes",
            "value": {
              "beta": 1.1,
              "jam_density": 0.2,
              "jam_speed": 2.0,
              "min_density": 0.8
            }
          }
        }
      ]
    ]
  },
  "vehicles": [
    {
      "headway": 10.0,
      "pce": 1.0
    },
    {
      "headway": 30.0,
      "pce": 5.0,
      "speed_function": {
        "type": "Piecewise",
        "value": [
          [
            0.0,
            0.0
          ],
          [
            25.0,
            25.0
          ],
          [
            100.0,
            25.0
          ]
        ]
      },
      "restricted_edges": [
        1
      ]
    }
  ]
}



Agent JSON File

Example Agent JSON File


[
  {
    "id": 1,
    "mode_choice": {
      "type": "Logit",
      "value": {
        "u": 0.5,
        "mu": 1.0
      }
    },
    "modes": [
      {
        "type": "Trip",
        "value": {
          "legs": [
            {
              "class": {
                "type": "Road",
                "value": {
                  "origin": 0,
                  "destination": 1,
                  "vehicle": 0
                }
              },
              "stopping_time": 600.0,
              "travel_utility": {
                "type": "Polynomial",
                "value": {
                  "a": 1.0,
                  "b": -0.003
                }
              },
              "schedule_utility": {
                "type": "None"
              }
            },
            {
              "class": {
                "type": "Virtual",
                "value": 300.0
              },
              "travel_utility": {
                "type": "Polynomial",
                "value": {
                  "b": -0.003
                }
              }
            }
          ],
          "departure_time_model": {
            "type": "ContinuousChoice",
            "value": {
              "period": [
                0.0,
                200.0
              ],
              "choice_model": {
                "type": "Logit",
                "value": {
                  "u": 0.5,
                  "mu": 1.0
                }
              }
            }
          },
          "origin_schedule_utility": {
            "type": "None"
          },
          "destination_schedule_utility": {
            "type": "AlphaBetaGamma",
            "value": {
              "t_star_low": 30.0,
              "t_star_high": 30.0,
              "beta": 1.0,
              "gamma": 4.0
            }
          },
          "pre_compute_route": true
        }
      },
      {
        "type": "Trip",
        "value": {
          "legs": [
            {
              "class": {
                "type": "Virtual",
                "value": 900.0
              }
            }
          ],
          "departure_time_model": {
            "type": "Constant",
            "value": 50.0
          }
        }
      }
    ]
  }
]



Parameters JSON File

Example Parameters JSON File


{
  "period": [
    0.0,
    200.0
  ],
  "network": {
    "road_network": {
      "recording_interval": 50.0,
      "approximation_bound": 1.0,
      "spillback": true,
      "max_pending_duration": 20.0,
      "algorithm_type": "Best"
    }
  },
  "learning_model": {
    "type": "Exponential",
    "value": {
      "alpha": 0.99
    }
  },
  "init_iteration_counter": 1,
  "stopping_criteria": [
    {
      "type": "MaxIteration",
      "value": 2
    },
    {
      "type": "DepartureTime",
      "value": [
        0.01,
        100.0
      ]
    }
  ],
  "update_ratio": 1.0,
  "random_seed": 19960813,
  "nb_threads": 24
}



Running the Simulator

Output Files

• log.txt: text file with the log of the simulation
• report.html: HTML file with a summary table and graphs
• iteration{n}.json: JSON file with aggregate results, for each iteration
• running_time.json: JSON file with running times for the different parts of the simulator
• agent_results.json.zst: compressed JSON file with agent-specific results
• skim_results.json.zst: compressed JSON file with network skim results (i.e., OD pair travel times)
• weight_results.json.zst: compressed JSON file with network weight results (i.e., edges' travel times)

report.html

iteration{n}.json

agent_results.json

skim_results.json

weight_results.json

Application Example

1. Pre-processing the road network (e.g., from OpenStreetMap data)
2. Connecting the origin/destination zones to the road network through connectors
3. Generating the population
4. Filtering the trips from the population that should be simulated
5. Writing the Metropolis input files

Pre-Processing the Road Network

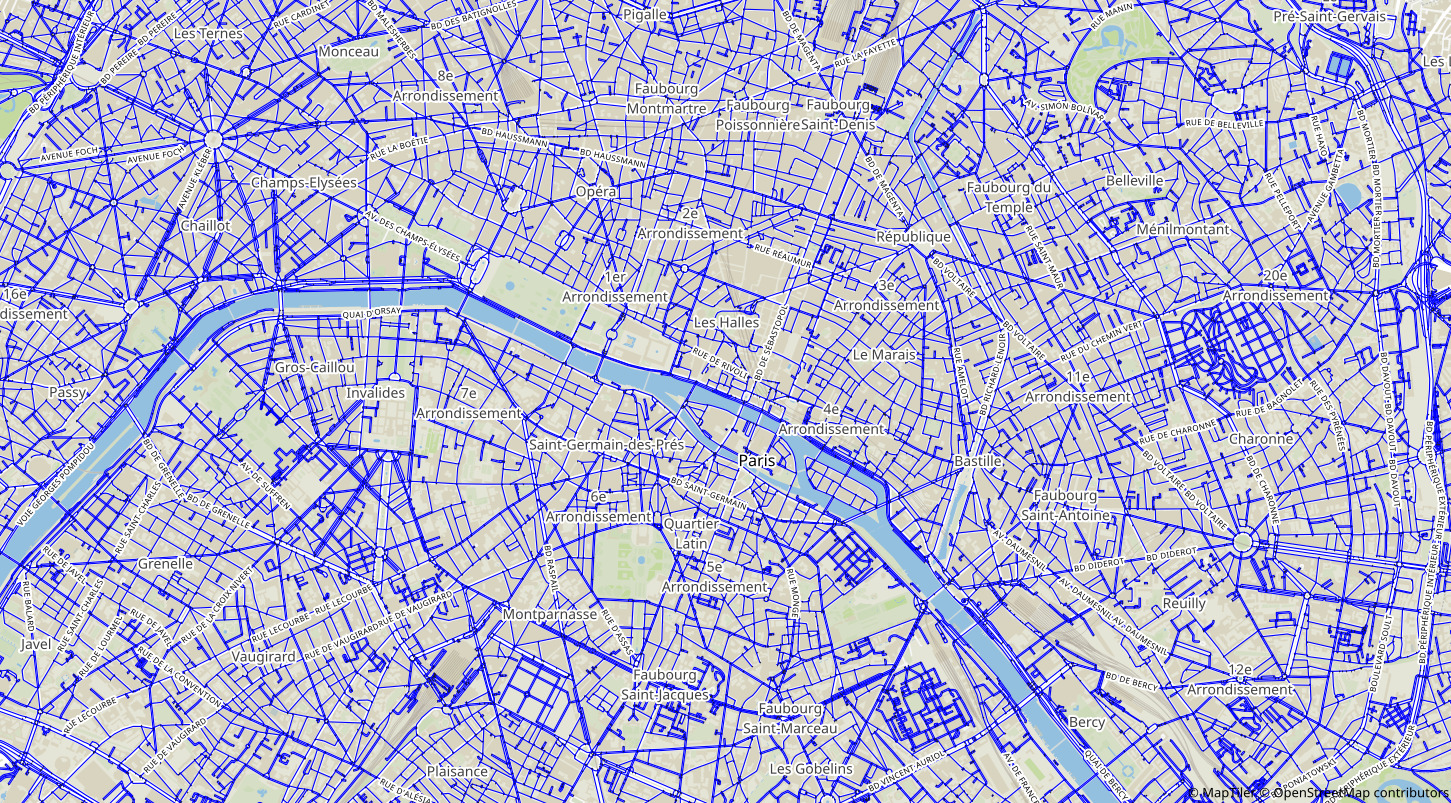

• Compatible data sources: OpenStreetMap and HERE
• Country-level and region-level OpenStreetMap data can be downloaded from https://download.geofabrik.de
• Filters can be used to discard less relevant roads (e.g., roads tagged as "residential" in OpenStreetMap)

Creating Connectors

• Trips' departure/arrival points are aggregated at an origin/destination zone level
• In France, IRIS zones are a good compromise between accuracy and running time
• Virtual nodes are created to represent the departure/arrival points of the trips in a zone
• Connectors (virtual edges) are created to connect the virtual nodes to the road network

Generating and Filtering the Population

• A synthetic population can be created from Hörl and Balac (2021)'s methodology
• Python scripts to convert the output from Hörl and Balac (2021) to data compatible with Metropolis
• Filters: simulated period, modes
• Intra-zonal trips are removed

Writing Metropolis Input Files

• Python script to write the 3 Metropolis input JSON files from the output of the previous steps
• Many parameters to choose and calibrate:
  • Vehicle length and PCE
  • Simulated period
  • Individual preferences (alpha, beta, gamma, etc.)
  • Edges' capacities
  • Edges' constant travel times
